SharkRF M1KE

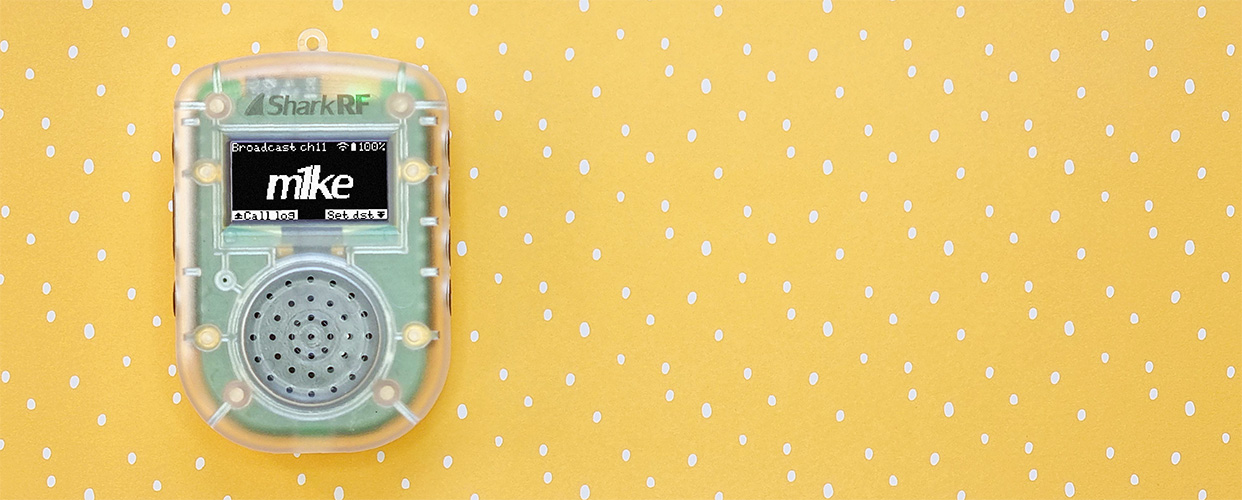

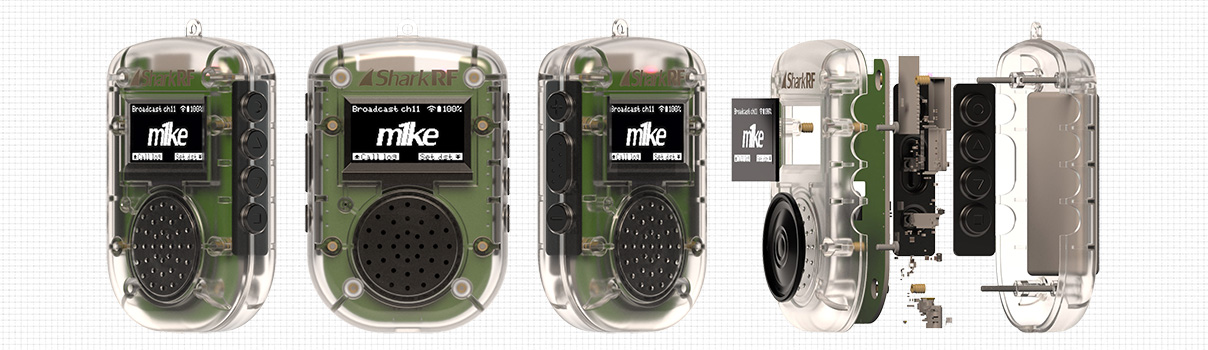

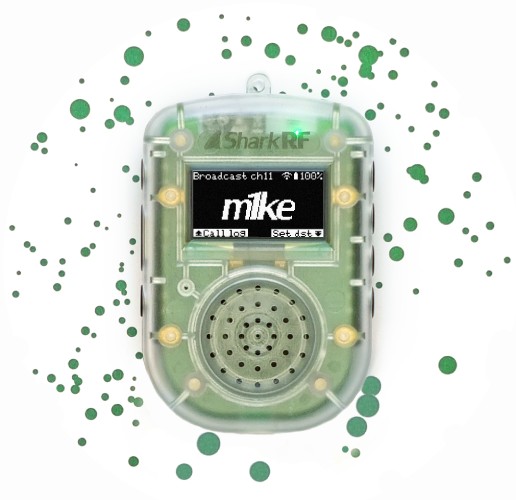

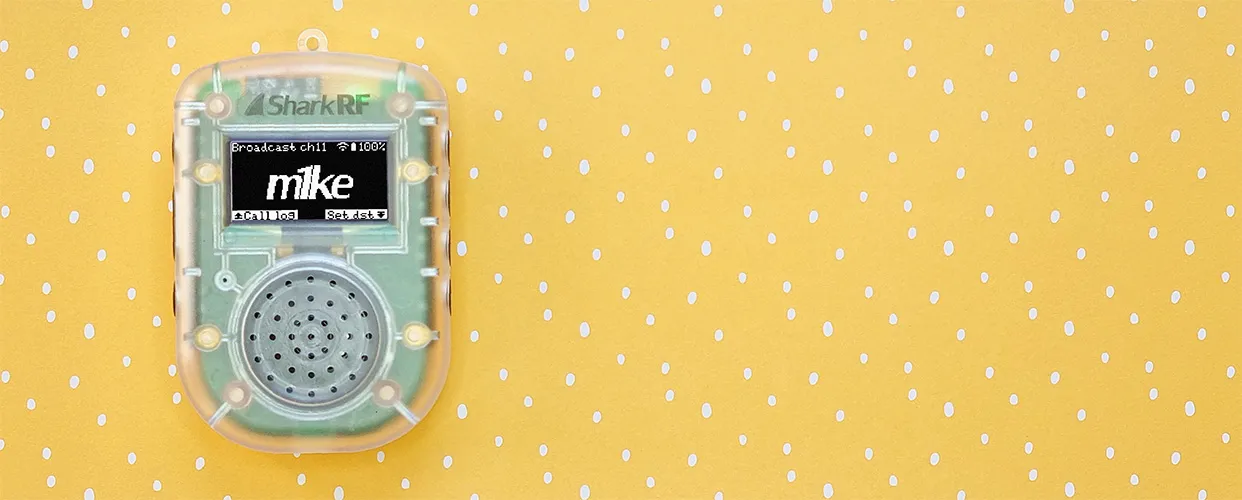

The M1KE is our latest battery powered, handheld WLAN IP transceiver designed for both amateur radio and unlicensed use. Besides chatting with other M1KE users nearby, you can talk to people living on the other side of the world very easily.
The M1KE (pronounced “mike” like the beginning of the word “microphone”) integrates the functionality of a traditional digital transceiver (such as a DMR or other digital radio) with the capabilities of a hotspot device like the openSPOT4 Pro, all within a single, versatile tool. It is a fully standalone transceiver (not a hotspot) and goes far beyond the combined capabilities of a typical digital transceiver and hotspot, offering advanced features and exceptional ease of use.
Compatible digital radio networks
- Supports direct communication with other M1KE devices (no internet connection or wireless infrastructure needed)
- Supports multicast communication with other M1KE devices over the connected wireless network
- DMR compatible networks (BrandMeister, DMRplus, DMR-MARC, Phoenix, XLX, TGIF and others)
- D-STAR® compatible networks (XLX, DCS, REF/DPlus, XRF/DExtra)
- System Fusion®/C4FM compatible networks (FCS, YSFReflector)
- NXDN® compatible networks (NXDNReflector)
- POCSAG compatible networks (DAPNET)
- APRS® compatible networks (APRS-IS)
- Custom private networks (built-in support for broadcast/multicast gateway operation and site linking over the internet)
- Custom private servers (SharkRF IP Connector)
Key features
- Li-Ion battery with up to 30 hours of operation* and fast battery charging support
- MEMS microphone with DSP audio processing (audio dynamic range compression, automatic gain control, equalization, noise reduction and special voice effects including pitch shift, chorus, delay)
- Speaker DSP audio processing (audio dynamic range compression, automatic gain control, equalization)
- 750 mW loud audio output power
- Sunlight readable OLED display with brightness control
- Bright multicolor LED with brightness control for easy real time state monitoring
- Phone and desktop browser compatible web interface for configuration and monitoring (including remote control and live display view with call audio playback)
- Extreme fast bootup, quick and easy operation
- Works out of the box without a computer or phone, no software, app or drivers to install
- Fully automatic over the air firmware upgrades

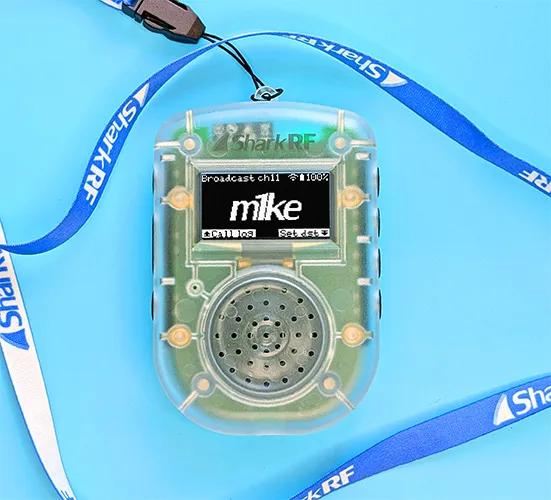

- USB-C charge cable and SharkRF lanyard included
- User manual available online
- 2 year warranty** with official support in email / community forum
Additional features
- Customizable boot and main screen logos, beep tone sequences
- Stores up to ~900 custom servers and PTT destinations
- Supports 10 configuration profiles and easy switching between them
- Up to 5 wireless network configurations can be saved per configuration profile with automatic connection management
- Supports DMR, APRS-IS and DAPNET messaging
- Supports scheduling automatic daily wakeup, powerdown and configuration profile switch
- BrandMeister Manager and Quick Call on the web interface for DMR TG/reflector linking/unlinking
- Built-in voice announcements
- Built-in echo service/parrot for voice testing
* The length of the battery discharge time is affected by the device’s operation mode (transmitting or receiving), display brightness, speaker volume, traffic on the connected wireless network (even if the traffic is not to/from the M1KE), signal strength, web interface communication.
** The battery and the USB-C charger cable have only one year long warranty period (70% battery end of warranty capacity).
D-STAR® is a registered trademark of Icom Inc.
System Fusion® is a registered trademark of Yaesu Musen Co., Ltd.
NXDN® is a registered trademark of JVC Kenwood Corp. and Icom Inc.
APRS® is a registered trademark Bob Bruninga, WB4APR
